P41 Series - Standard Ultrasonic Sensors

Flat design and easy operation

P41 series ultrasonic sensors with a flat sensor housing simplify integration into various devices and applications with limited installation space thanks to their low height. Analog and switching outputs are easy to teach in using a teach-in procedure and buttons integrated in the device, repeatedly if required.

Key features

  • Ranges up to 350 cm
  • LED function display
  • Teach-in setting function
  • Synchronization of multiple sensors

Application examples

  • Diameter measurement
  • Level measurement
  • Height measurement and control
  • Sag control measurements
P41 - Series Standstard Ultrasonic Sensors
Design
Detecting range
Output
Setting
IP rating
Connection

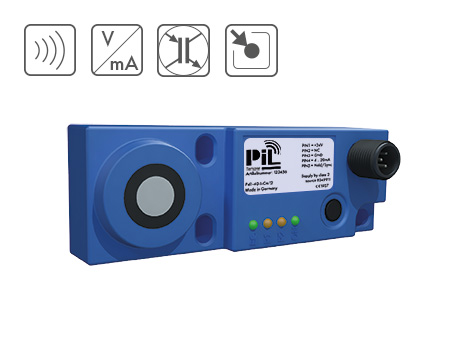

P41-40

P41-40

Compact, flat sensor for short detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
30 - 400 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41-40
P41-50

P41-50

Compact, flat sensor for short detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
60 - 500 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41-50

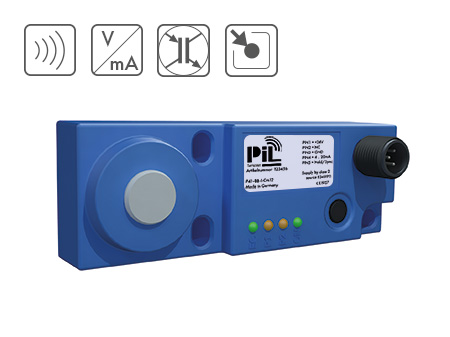

P41-80

P41-80

Compact, flat sensor for medium detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
100 - 800 ,
Output
0 - 10V , 4 - 20mA , PNP NO/NC , NPN NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41-80

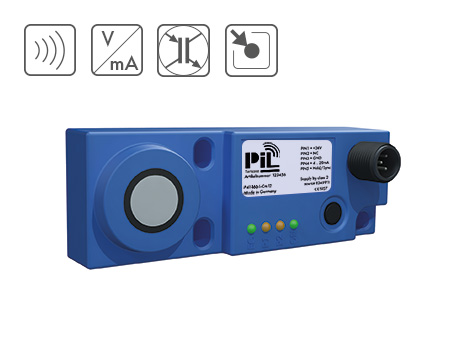

P41-160

P41-160

Compact, flat sensor for medium detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
80 - 1600 ,
Output
0 - 10V , 4 - 20mA , PNP NO/NC , NPN NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41-160

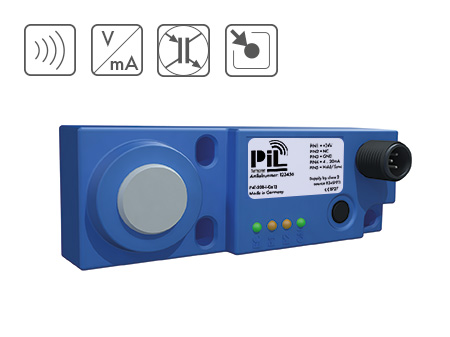

P41-200

P41-200

Compact, flat sensor for medium detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
200 - 2000 ,
Output
0 - 10V , 4 - 20mA , PNP NO/NC , NPN NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41- 200

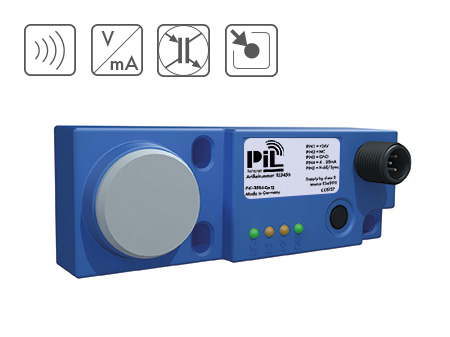

P41-350

P41-350

Compact, flat sensor for wide detecting ranges. All parameters such as range, switching points, inverted output signal and window mode can be set using the teach-in function via a button on the device.

24h-quote
SeriesP41
Design square
Detecting range
350 - 3500 ,
Output
0 - 10V , 4 - 20mA , PNP NO/NC , NPN NO/NC ,
SettingTeach-In
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P41-350
