P43 Series - Standard Ultrasonic Sensors

For demanding applications

PiL ultrasonic sensors from the P43 series are specially designed for demanding applications with more than one switching point or variable analogue characteristic. With ranges between 25 mm and 6000 mm, the series offers a wide range of applications for a wide variety of industries. The analogue and switching outputs are taught in via a teach-in input using an optional external push-button. The series has one analogue 0 ... 10 V or 4 ... 20 mA output or two switching outputs.

    Key features

    • Ranges up to 6 m
    • High repeatability ┬▒ 0.2 mm
    • Small design of M12
    • Function LED and Teach-In

    Application examples

    • Level control
    • Object positioning
    • Control of occupancy
    • Stack height measurement



    P43 Ultrasonic Sensors
    Design
    Detecting range
    Output
    Setting
    IP rating
    Connection

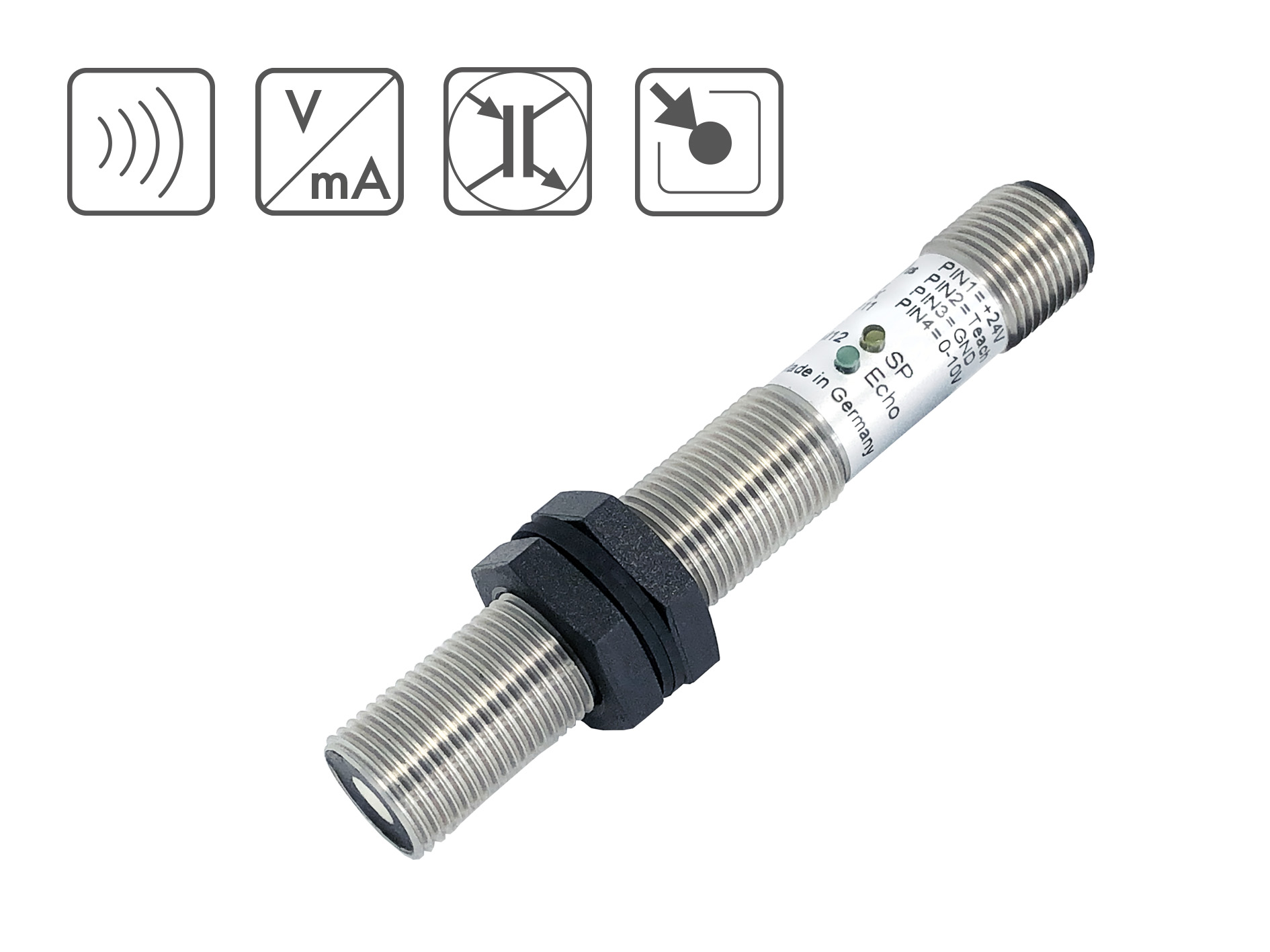

    P43-25-M12

    P43-25-M12

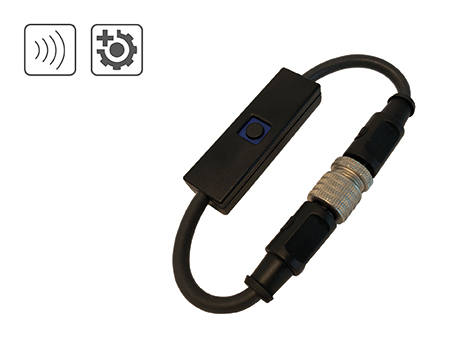

    Compact M12 ultrasonic sensor with 12 mm diameter for demanding applications with a switching point or variable analogue characteristic. Ranges as well as window and hysteresis functions can be individually set using a teach-in procedure. A teach-in adapter is available separately.

    24h-quote
    SeriesP43
    Design M12
    Detecting range
    25 - 250 , bis 300 , bis 1100 ,
    Output
    0 - 10V , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP65
    Connection
    Connector, M12 connector ,
    Data sheet
    Download PDF Datasheet P43-25-M12

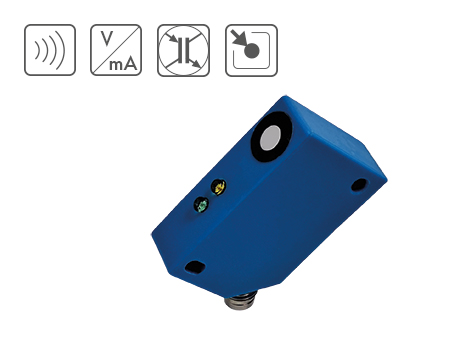

    P43-25-R40

    P43-25-R40

    Compact ultrasonic sensor in a flat rectangular housing for side and rear mounting, with one switching point or variable analogue characteristic curve. Teach-in by means of a magnet or wired.

    24h-quote
    SeriesP43
    Design 26x12x40
    Detecting range
    25 - 250 , bis 300 , bis 1100 ,
    Output
    0 - 10V , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Connector,
    Data sheet
    Download PDF Datasheet P43-25-R40

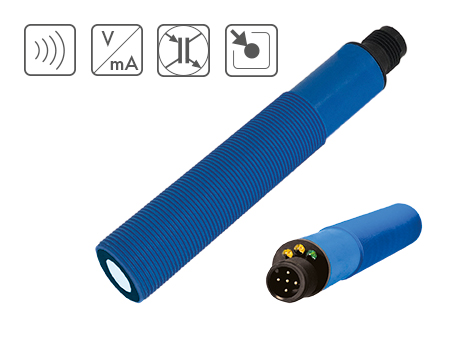

    P43-40-M18

    P43-40-M18

    Ultrasonic sensor in M18 housing for demanding applications, with two switching points or variable analogue characteristic curve and possible settings, such as window function and hysteresis, teachable via Teach-In.

    24h-quote
    SeriesP43
    Design M18
    Detecting range
    30 - 400 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Cable, Connector,
    Data sheet
    Download PDF Datasheet P43-40-M18

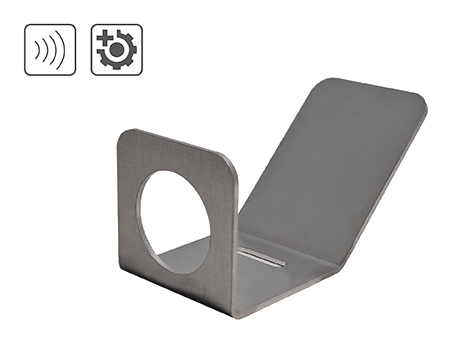

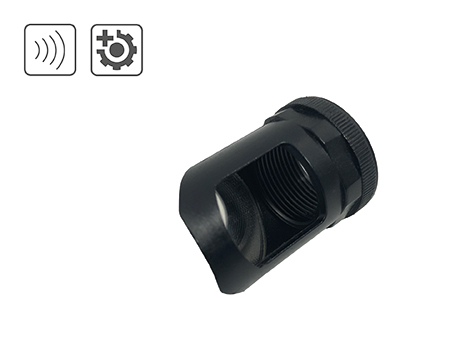

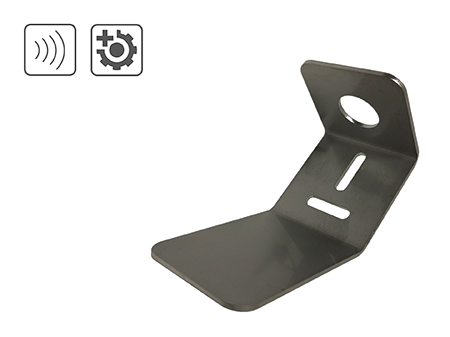

    Ultrasonic reflector deflector M18 90 degrees Data sheet

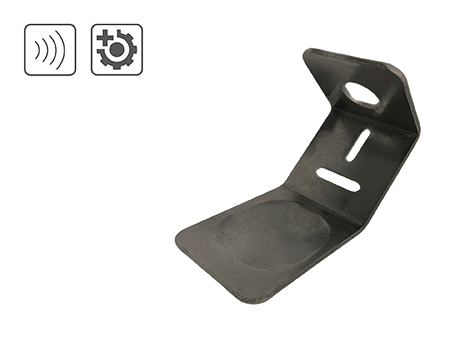

    Ultrasonic reflector deflector focussed M18 90 degrees Data sheet

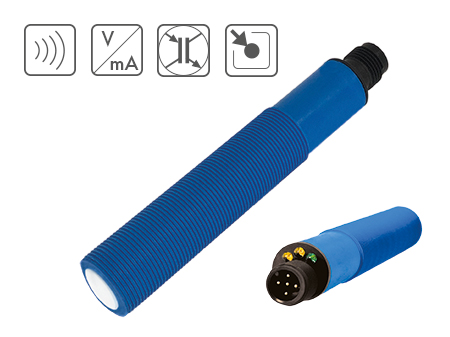

    P43-50-M18

    P43-50-M18

    Ultrasonic sensor in M18 housing for demanding applications, with two switching points or variable analogue characteristic curve and possible settings, such as window function and hysteresis, teachable via teach-in. The sensor is available with either a plug or cable connection.

    24h-quote
    SeriesP43
    Design M18
    Detecting range
    60 - 500 , bis 1100 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Cable, Connector,
    Data sheet
    Download PDF Datasheet P43-50-M18

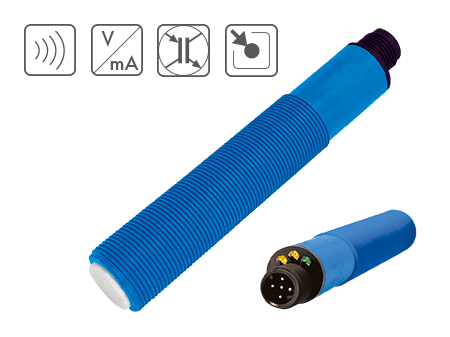

    P43-80-M18

    P43-80-M18

    Compact ultrasonic sensor in M18 housing for demanding applications, with two switching points or variable analogue characteristic curve and possible settings, such as window function and hysteresis, teachable via TeachTin. The sensor is available with either plug or cable connection.

    24h-quote
    SeriesP43
    Design M18
    Detecting range
    100 - 800 , bis 1100 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Cable, Connector,
    Data sheet
    Download PDF Datasheet P43-80-M18

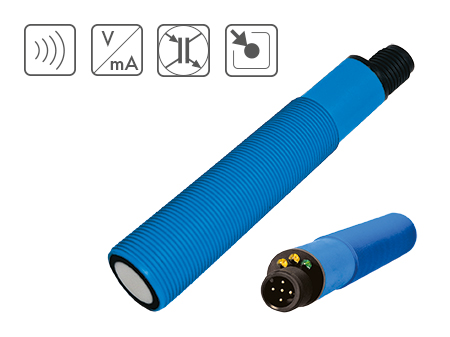

    P43-160-M18

    P43-160-M18

    Compact ultrasonic sensor in M18 housing for demanding applications, with two switching points or variable analogue characteristic curve and possible settings, such as window function and hysteresis, teachable via Teach-In. The sensor is available with either plug or cable connection.

    24h-quote
    SeriesP43
    Design M18
    Detecting range
    80 - 1600 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP65
    Connection
    Connector, Cable,
    Data sheet
    Download PDF Datasheet P43-160-M18

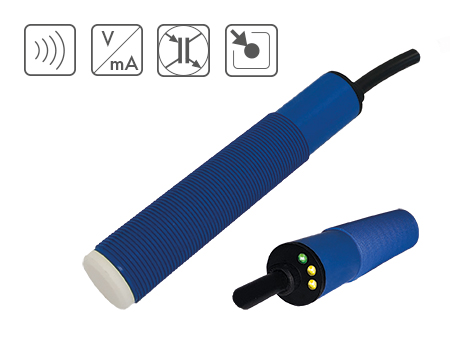

    P43-200-M18

    P43-200-M18

    Ultrasonic sensor in M30 housing, range up to 200 cm, with plug or cable connection and LED function display. Individual detection ranges, switching points and window and hysteresis functions can be repeatedly taught in. Available as plug or cable version.

    24h-quote
    SeriesP43
    Design M18
    Detecting range
    200 - 2000 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP65
    Connection
    Connector, Cable,
    Data sheet
    Download PDF Datasheet P43-200-M18
    P43-250-M30

    P43-250-M30

    Ultrasonic sensor in M30 housing, range up to 250 cm, with plug or cable connection and LED function display. Individual detection ranges, switching points and window and hysteresis functions can be repeatedly taught in. Available as a plug or cable version.

    24h-quote
    SeriesP43
    Design M30
    Detecting range
    250 - 2500 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Connector, Cable,
    Data sheet
    Download PDF Datasheet P43-250-M30

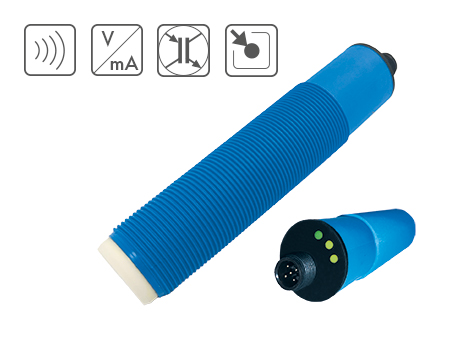

    P43-350-M30

    P43-350-M30

    Ultrasonic sensor in M30 housing, range up to 350 cm, with plug or cable connection and LED function display. Individual detection ranges, switching points and window and hysteresis functions can be repeatedly taught in. Available as a plug or cable version.

    24h-quote
    SeriesP43
    Design M30
    Detecting range
    350 - 3500 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP67
    Connection
    Connector, Cable,
    Data sheet
    Download PDF Datasheet P43-350-M30

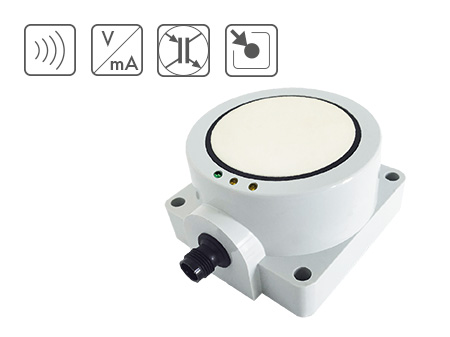

    P43-600-Q50

    P43-600-Q50

    Long-range ultrasonic distance sensor in a square housing with a range of up to 600 cm and LED function display. Individual detection ranges, switching points and window and hysteresis functions can be repeatedly taught in.

    24h-quote
    SeriesP43
    Design 80x80x50
    Detecting range
    600 - 6000 ,
    Output
    0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
    Setting
    IP rating IP65
    Connection
    Connector,
    Data sheet
    Download PDF Datasheet P43-600-M30
